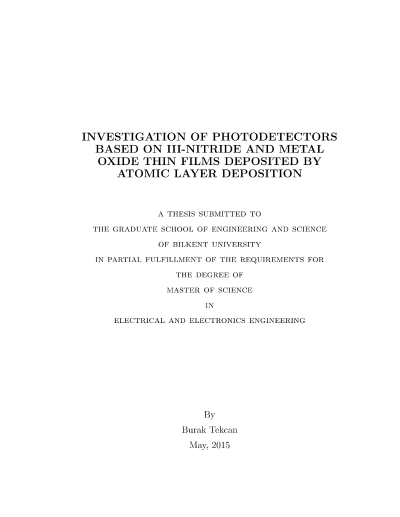

Atomik katman kaplama tekniği ile III-nitrür ve metal-oksit bileşik temelli fotodedektörlerin araştırılması

Gallium Nitride (GaN), one of the most attractive optoelectronic materials today with a direct wide band gap of 3.4eV and high electron saturation velocity, has found many applications from blue/UV LEDs to UV photodetectors, from high electron mobility transistors (HEMT) to solar cells. Traditional techniques to grow GaN films require high temperature (over 600ºC) processes. Such techniques cannot be used to synthesize GaN films on temperature sensitive substrates such as plastics or even paper for large area optoelectronic applications. To circumvent this setback, atomic layer deposition (ALD) stands out with its unique features such as low temperature process, precise thickness control and step coverage. Our work marks the demonstration of the first optical device on hollow cathode plasma assisted atomic layer deposition (HCPA-ALD) grown GaN films. The fabricated devices showed promising electrical and optical performance. A UV/VIS contrast ratio of 15 is obtained with very low dark current of 14pA at 20V applied bias. Annealing the films improved the device performance. Dark current was reduced more than two orders of magnitude while the responsivity was increased by two times. In the second part of the thesis, optoelectronic device applications on ALD grown ZnO layers will be presented. ZnO is also an attractive wide direct band gap semiconductor. It is utilized in many optical devices such as photodetectors and solar cells as well as thin film transistors and biomedical applications. In this work, device applications of ZnO on Silicon heterojunctions are investigated. A high rectification ratio of 103 is achieved with 80ºC grown ZnO-Si heterojunction photodiodes. High responsivity values are also recorded for these devices. At 350nm incident wavelength maximum responsivity of 35mA/W and at 585nm incident wavelength maximum responsivity of 90mA/W are obtained.
