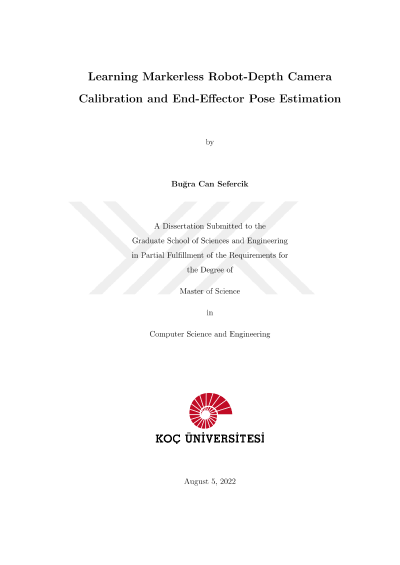

Learning markerless robot-depth camera calibration and end-effector pose estimation

Robot arms are being used more and more in unstructured environments. As such, they are relying more on vision sensors compared to traditional factory robots which are placed in highly structured, controlled and caged work-cells. Some applications that rely on vision data include bin-picking, box picking and placing, assembly and part feeding in mixed human-robot work cells, inspection, quality control etc. Vision data is mainly required to localize the objects to be manipulated, perform measurements and detect near-by humans. Vision based robot systems require extrinsic calibration between the robot and camera in order to work properly. This is a time consuming and tedious procedure which can be expensive as well. Fast, flexible and precise robot-camera calibration is essential for not only industrial environments but also academic lab environments where the location of the camera and/or robot needs to be frequently or is accidentally changed. Extrinsic calibration between a robot arm and camera is a decades old challenge still prevalent to this day. Traditional techniques work by estimating pose of the camera relative to a fiducial marker from multiple points and matching these estimations with the robot's pose. Recent learning based approaches predict extrinsic calibration from images relying heavily on simulation data. In this thesis, we present a learning based markerless extrinsic calibration system that uses a depth camera. We learn models for end-effector (EE) segmentation, single-frame rotation prediction and keypoint detection, from automatically generated real-world data. Our models are based on MinkUNet and PointNet++ architectures. We use a transformation trick to get EE pose estimates from rotation predictions and a matching algorithm to get EE pose estimates from keypoint predictions. We further utilize the iterative closest point (ICP) algorithm, multiple-frames and outlier detection to increase calibration robustness. Our results on the test set with previously unseen camera locations give sub-centimeter (0.74 cm) and less than 0.05 radians (1.69 degrees) average calibration errors and 1.00 cm and 2.74 degrees average pose estimation errors. In addition, we released an open source easy to use tool for robot users to handle robot-camera calibration with a few mouse clicks by seamlessly integrating all the models and algorithms discussed in this thesis.
