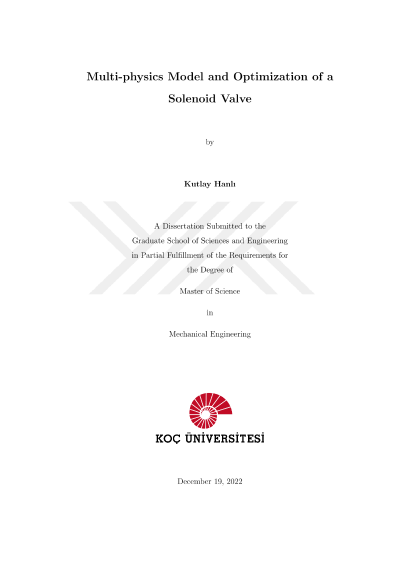

Solenoid vana çoklu-fizik modeli ve optimizasyonu

There are several limitations when designing solenoid systems. With proper search space selection possible designs can be narrowed down lightest, fastest and most power efficient depending on the application. A method was developed starting from computing required coil design to overcome sealing forces, minimizing structural thicknesses to reduce weight and looking into the effect of manufacturing tolerances and clearances as a perturbation matrix. This was achieved by a multi-physics simulation where the magnetic circuit is modeled using magnetic reluctances of parts and clearances. The fluid flow was computed assuming ideal gas, 1D flow and adiabatic process.
