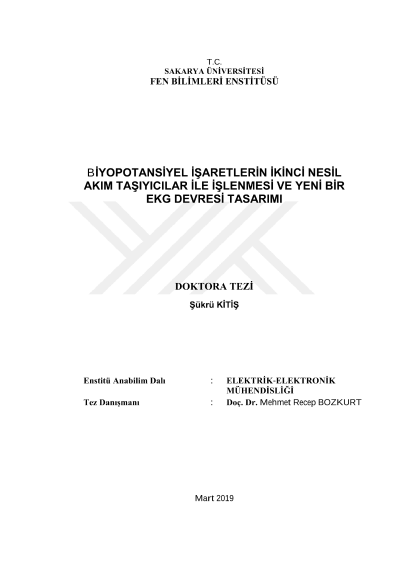

Processing of biopotential signals with second generation current conveyors and a new ecg circuit design

SUMMARY Keywords: CCII, second generation current conveyors, filter, ECG In this study, an ECG device was designed and this device was carried out with second generation current carriers. Second generation current carriers were used as filters in this ECG circuit. Measurements were simultaneously performed with MP36 ECG device produced by BIOPAC Systems Inc. that is belong to Sakarya University Electrical and Electronics Engineering Department in order to be able to check and compare accuracy of this device. An ECG circuit designed with OPAMPs was also carried out and results were evaluated. This circuit, which was realized with OPAMPs, was redesigned with second generation current carriers and results were evaluated by performing. Thus, an ECG circuit realized with OPAMPs, a redesigned ECG circuit with second generation current carriers were designed in this study, and an ECG circuit with second generation current carriers, MP36 circuit and previous circuits in literature were compared. In addition, filters, amplifiers and some circuits, which are frequently used in biomedical devices are simulated. Noises were reduced to minimum in CCII-based circuit and very clear ECG measurements was done. ECG circuit can be reduced to size of 9.5 * 9.5 cm2. It is possible to further reduce integrals and other elements by use of SMD types. Performed circuit is also advantageous in terms of cost. Another advantage is that it can work with 4 batteries. It was concluded that CCII based ECG circuits are more advantageous in terms of CMRR ratio, frequency range, amplification rate and ease of application. Also, in this study, a filter structure having a cut-off frequency between 5 Hz to 100 MHz was proposed because of adding adjusted resistors to CCII structure to adjust resonance frequency and achieve better results, and it was observed to be usable in this circuit.
