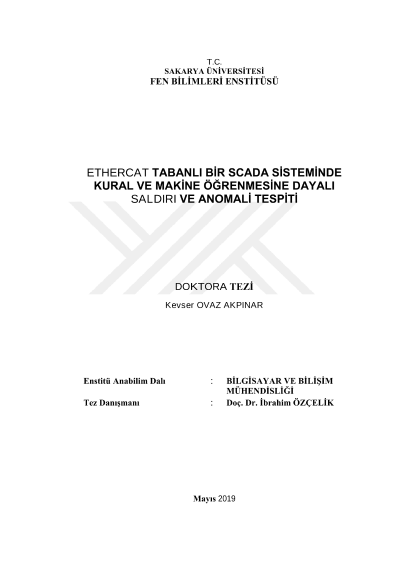

Rule and machine learning based intrusion and anomaly detection in an ethercat based SCADA system

Industrial control systems (ICS) are critical infrastructures in terms of their location and components. These systems have their own features and operation related to the application field independent from the information technologies (IT). They are also adapted with the Ethernet technologies based on the idea of providing horizontal and vertical integration between the levels in the automation hierarchy with a single protocol. Therefore, ICSs are threatened by cyber attacks, due to both their nature and support of IT services through Ethernet. This risk requires ICS specific solutions to detect and prevent attacks which use communication infrastructure. In this study, two rule based which detect known and unknown attacks on the Snort system and one anomaly based which uses machine learning techniques, in total of three different approaches were presented as a holistic structure for Ethernet based real-time EtherCAT protocol, which is widely used in automation applications. In the case of rule based intrusion detection, the EtherCAT preprocessor was proposed, which applies the trust node approach for known attacks, and identifies the field bus repetition period for unknown attacks, with statistical techniques and novel solutions. The findings were presented to the user on the ELK stack, which is a logging and monitoring structure. For anomaly based intrusion detection, the water level control automation testbed was developed, a dataset was prepared by generating events and various machine learning techniques were applied on the dataset. According to the findings obtained in this research, it was concluded that the period determination which was applied within the scope of unknown attack detection can be made with 95% - 99% accuracy. When the logs and alerts of the realized MAC spoofing, data injection, DoS, slave attacks were investigated, it was seen that the attacks were able to be detected successfully. For anomaly detection part of the study, k-NN and SVM GA techniques were found to be successful in detecting events.
