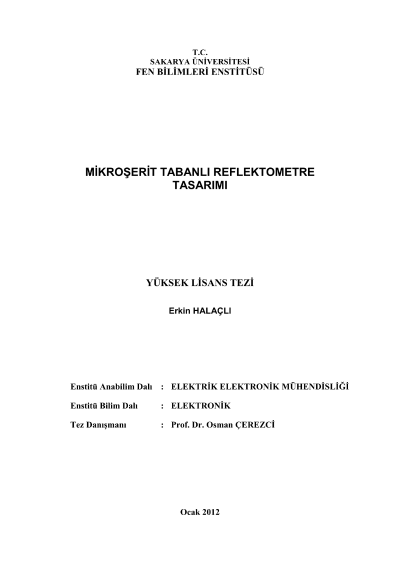

Design of a wideband reflectometer by using microstrip lines
Is this your thesis?
This record came from a bulk archive import. If it’s yours, link it to your profile.
Abstract (EN)
In order to measure reflection coefficent of a device under test, a wideband reflectometer is designd by using microstrip transmission lines. The goal of the design is to make produce process simpler and for that, it is only used wilkinson power dividers and delay lines. Circuit is simulated by ADS before the production and the simulation results are satisfied. Then circuit is printed on to FR-4 substrate end tested. Imperfections are calibrated. Compared to the simulation, good results are obtained.
Author
Erkin Halaçlı
Institution
How to Cite
Erkin Halaçlı (Master Thesis). Design of a wideband reflectometer by using microstrip lines, 2012, Sakarya University.
Keywords
License
Tüm Hakları Saklıdır
This work is shared under the specified license terms.
