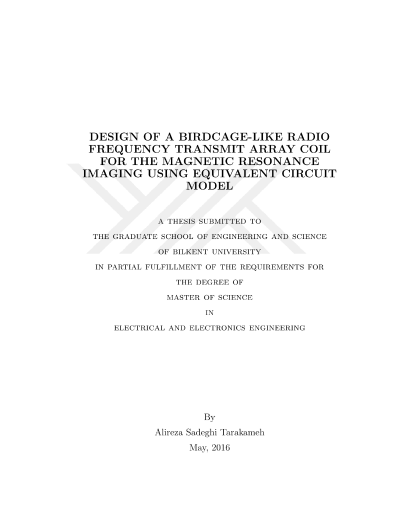

Manyetik resonans görüntüleme için eşdeğer devre modeli kullanılarak kuşkafesi benzeri radyo frekans iletim dizisi sargısı tasarımı

One of the conditions to have a good magnetic resonance (MR) image is applying a homogeneous radio-frequency (RF) excitation (magnetic field) with efficiently high intensity to the region of interest. However, there are some limitations such as specific absorption rate (SAR) which is not allowed to exceed some standard levels. Since SAR level directly depends on the electric field and the electric field is coupled to the magnetic field, there is a trade-off between high-intensity RF-excitation and low SAR level. Moreover, in conventional RF coils (birdcage) for the MRI, the magnetic field profile is almost constant so that its intensity is pretty high at the center of the coil and decreases toward the coil. In such a coil, it is not possible to aim an off-center small region of interest and make the homogeneity concentrated at that region. Transmit array (Tx-array) coils provide high controllability on both electric and magnetic field, so, they would be good solutions for all of these issues, although, they come across the efficiency problem at the center when the same performance of a conventional RF coil is required. This problem has been already handled using a birdcage-like Tx-array coil, however, there are some difficulties to design and tune such a coil. In this thesis, we proposed a novel design method for birdcage-like Tx-array coil; an eight-channel birdcage-like Tx-array coil is designed using the equivalent lumped-element circuit model. This design profits controllability feature of an array and high transmit efficiency of a birdcage coil at the center, simultaneously. A capacitive decoupling method is utilized in order to get rid of reactive interactions between channels of the array. Then, an optimization (the steepest-descent method) with constraints based on minimizing the electric field and smoothing the magnetic field is applied to the voltage-excitations of the Tx-array coil. The proposed decoupling method provides 15dB matching for each channel and higher than 12dB decoupling between adjacent channels and at least 19dB for nonadjacent channels. This Tx-array coil provides only 3% less efficiency versus the birdcage coil at the center of the coil, while, at the regions close to the surface of the phantom we achieved more than 72% better efficiency in comparison to the birdcage coil. Furthermore, we demonstrated that the Tx-array is capable to produce a homogeneous magnetic field at an arbitrary (off-center) region of interest. This adjustment can be performed for the electric field as well such that the electric field and so the SAR can be minimized locally. Consequently, the proposed configuration of the Tx-array coil provides an efficient excitation while capability of local RF shimming and local electric-field-reduction can be achieved.
