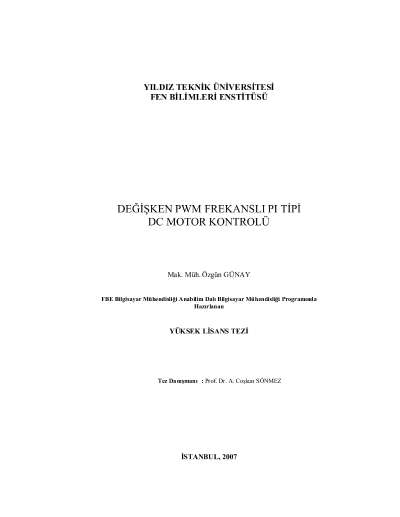

DC Motor Control with a Variable PWM Frequency
Is this your thesis?
This record came from a bulk archive import. If it’s yours, link it to your profile.
Abstract (EN)
DC motors widely used, due to the easy controllability, inexpensive prices, durability and less maintenance requirements. Speed of DC motor can be controlled efficiently and effectively by changing the wideness of pulses. PWM frequency determines the controller performance and PWM duty ratio determines the speed. PIC 16F877A microcontroller is chosen due to inexpensive prices, simple development environment, serial interface, capture module and PWM module. The microcontroller takes the target speed from analog input, calculates the optimum P and I parameters according to the variations of the target speed, determine the PWM frequency and duty ratio as an output. Due to the optimum controller parameters and PWM frequency, system efficiency increases in slow speed variations, performance increases in high speed variations.
Author
Özgün Günay
How to Cite
Özgün Günay (Master Thesis). DC Motor Control with a Variable PWM Frequency, 2007, Yıldız Technical University.
Keywords
License
Tüm Hakları Saklıdır
This work is shared under the specified license terms.
