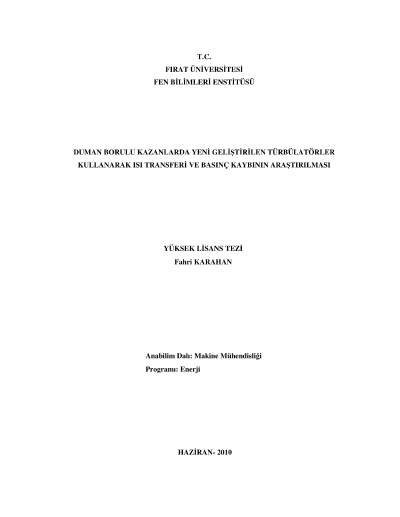

The investigation of heat transfer and pressure loss new developments turbulators using in the smoke pipe boilers

In this study, 8 different types band turbulators using was investigated heat transfer development in solid fuel boiler of 125.000 kcal/h at Malatya Mimsan boiler factory. Besides the pressure loss was measured cause by turbulators. Experiments were made up which turbulators put all of smoke pipes in the boiler. First experiment was made up none turbulator. Later experiments were done different types turbulators and heat transfer was calculated. Besides pressure loss were increased.The experiments, which fan flow was changed with throttle, was done Reynolds number from 18000 to 28000
