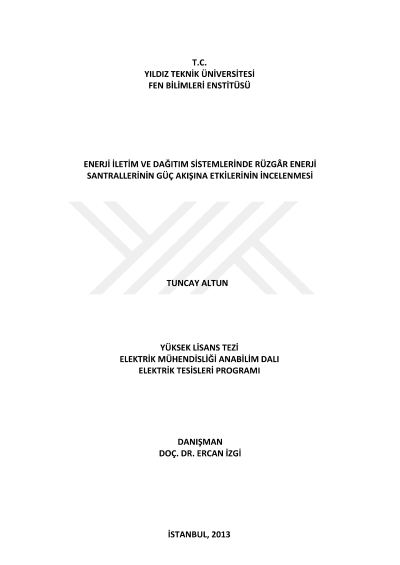

In power transmission and distribution system of the wind energy plants to study the effects on power flow

At the present day, energy is the main input of production and it has became much important to use the existing energy sources economically and safely. In our country, it is faced difficulties at the production, transmission and distribution of electrical energy due to the different standarsts used at equipment. The most effective way of resolving these problems, do R & D work in all power plants, high-tech automation systems is to establish and develop. Matlab presents serious possibilities to the user at basic maths and engineering. In this thesis study, with 154 kV/34,5 kV electricity transmission and distribution network is modelled and analysed by using the Simulink toolbox. In addition to the system by including renewable energy plants with the specified system response scenarios in terms of power quality have been studied. In particular, various types of wind turbine generator and power quality of the network connectivity issues were investigated and the necessary recommendations have been presented through simulation.
