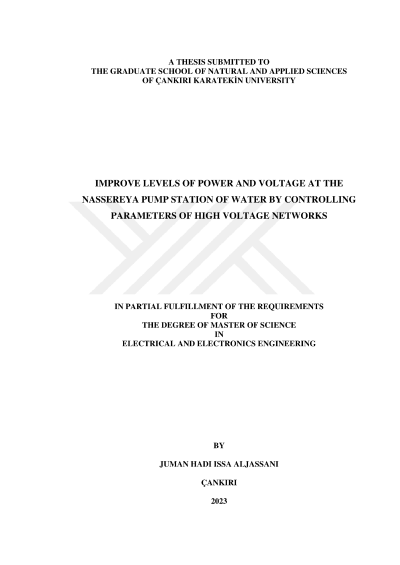

Improve levels of power & voltage at the nassereya pump station of water by controlling parameters of high voltage networks

This paper's research focuses on the real problems which suffer from pumps station during their connection with the national electric network, in our paper, we will take negative effects that appear in the pump stations with power flow parameters, voltage, active and reactive power current loading, and total losses. Using the electric network have 28 Buses (test 2) as a simulation of Iraq's electric network. Firstly we will connect the pump station has a capacity of power equal to 75 MVA and do an analysis by the Neplan program which uses Newton Raphson method to calculate load flow, after that, we are solving problems by using FACT'S system (SVC, UPFC, and capacitor bank) also taken the problem of power equality as an effect of Harmonic which production from electronic device soft start of a pump station and method treatment by passive filter first order. At last, we are studying the effect of fault current and how to reduce the effect by using the Current Limiting Reactor (CLR).
