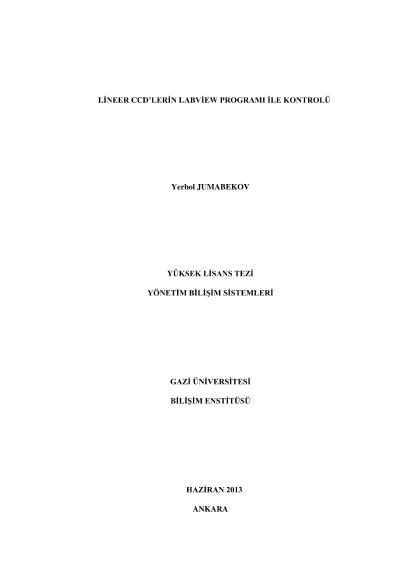

Linear CCD s using Labview control

This paper describes the development of LabVIEW 11.0 based for charge-coupled device (CCD) liner image sensor. The Toshiba TSD 1304DG CCD linear image sensor contains 3648 effective pixels, each pixel approximately 8µm x 200µm. The dimension of a measured object is determined form its shadow projected on a CCD sensor. Alight source of parallel beams is usually applied in this case. To achieve such light source quality, an optical system with lenses has to be used, it increases its dimension. The method of using LabVIEW's interface, TCN-1304-U camera's operating logic and test sets are described in CCD's experimental modules method.
