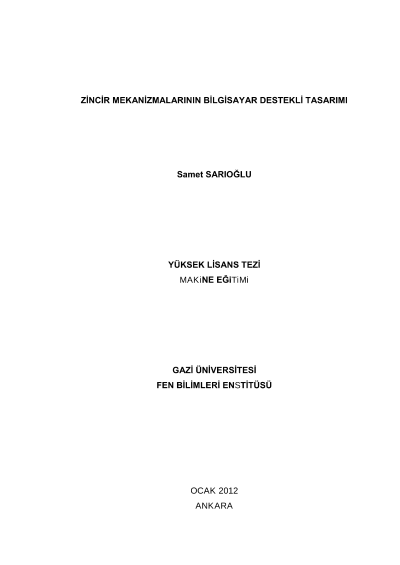

Computer aided design of chain mechanisms
Is this your thesis?
This record came from a bulk archive import. If it’s yours, link it to your profile.
Abstract (EN)
In this study a programme was prepared to design and draw pulley roller, bushing, gall, flayer and steel chains. Autocad and visual basic language has been used in programming . Graphic sizes and drawings has been added to Excel sheet or VBA code Windows for the design. Depending on the power of the chain, input speed, transmission rate and working conditions, the minimum number of gear has been done automatically. It is possible that alternative gear is numbered in the program and is manuel in the multi-tiered designs. It has been provided to draw the selected chain mechanism by using one-touch automatically in autocad sheet as 2B with the help of VBA and Autolips
Author
Samet Sarıoğlu
How to Cite
Samet Sarıoğlu (Master Thesis). Computer aided design of chain mechanisms, 2012, Gazi University.
Keywords
License
Tüm Hakları Saklıdır
This work is shared under the specified license terms.
