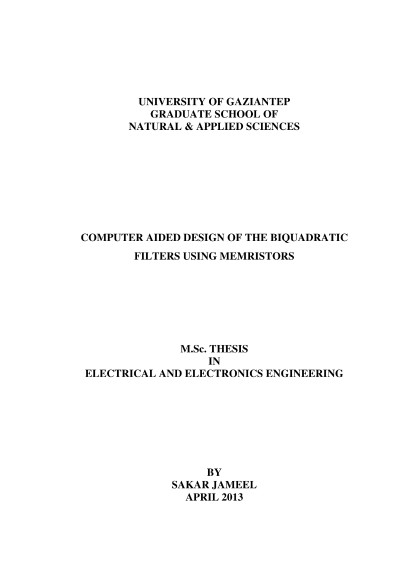

Computer aided design of the biquadratic filters using memristors

This thesis presents new circuit topologies realized by using the fourth passive element memristor. The terminal equations and the properties of memristor are given and its SPICE model is simulated.Some active circuit applications such as biquadratic active filters, frequency dependent negative resistor realization oscillator design are given employing the memristors instead of capacitors. The fully integrated circuit configurations are derived and their terminal relations are calculated.The gain curves of the proposed filters, i-v characteristics of the frequency dependent negative resistor, the oscillation wave form of oscillator are plotted using SPICE simulator.
