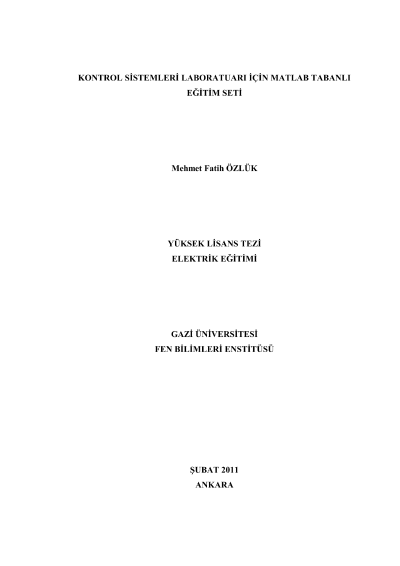

Matlab based educational toolbox for control system laboratory

In this study, MATLAB based user interface (GUI) and Simulink applications, which include analysises and experiments for control system courses have been introduced. Learning these softwares in order to test systems both takes long time and gets the users away from the main aim. Therefore, the user interface developed in this investigation in MATLAB and associated Simulink applications have provided the facilities for users to analyse and design control systems without requiring depth knowledge about advanced engineering mathematics, control system theories and programming. The user interface developed has not only provided opportunity to test both continuous and discrete time applications but also made control system experiments more comprehensible and understandable.
