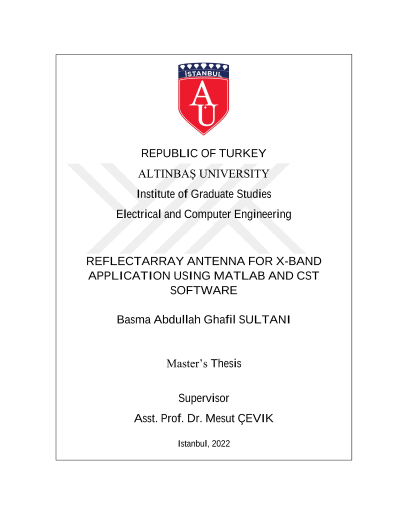

MATLAB ve CST yazılımı kullanılan X-band uygulaması için reflectarray anteni

A reflect array was created using CST simulations and the MATLAB computer language. In applications needing high gain and efficiency, reflect arrays are gradually replacing parabolic reflectors. Massive reflect arrays take a long time and a lot of effort to build. A feed antenna is required to excite a planar or conformal array of components in order to build a reflect array antenna. They are the most expensive for large antennas that demand a lot of electrical power, while being the most practical and cost-effective option. The "X band" has a variety of frequencies that may be found in the microwave radio region of the electromagnetic spectrum. The X band is a frequency range in communication engineering that ranges from 8 to 12 GHz. Following an intensive study of all pertinent data, the MATLAB code will be thoroughly examined. The data from the CST program will be utilized to build the antenna. The CST construction of a reflect array antenna is simplified by MATLAB code that generates an antenna pattern. A gain of 60 dBi is possible using a reflect array feed antenna and a horn as the feed antenna. This configuration yields a gain of sixty dBi.
