Determination of mode I fracture toughness for Araldite 2015 epoxy adhesive by experiment and finite element method
Is this your thesis?
This record came from a bulk archive import. If it’s yours, link it to your profile.
Abstract (EN)
In this study; Double Cantilever Beam (DCB) experiment and finite element method were used to find mod I fracture toughness value and strain energy release rate of Araldite 2015 epoxy adhesive. Load-displacement values and crack lengths were determined from DCB experiment. Modified beam theory and compliance calibration method have been used to calculate Mod I strain energy release rate by using load-displacement values and crack lengths. In addition, Mod I fracture toughness value of Araldite 2015 epoxy adhesive has been obtained by using Mod I strain energy release rate. Additionally Finite element method has been done with DCB experimental values. As a result of this study, experimental and finite element method calculated results are also compared with literature result.Keywords: Fracture Toughness, Epoxy Adhesive, Fracture mechanic
Author
Engin Erbayrak
Institution
How to Cite

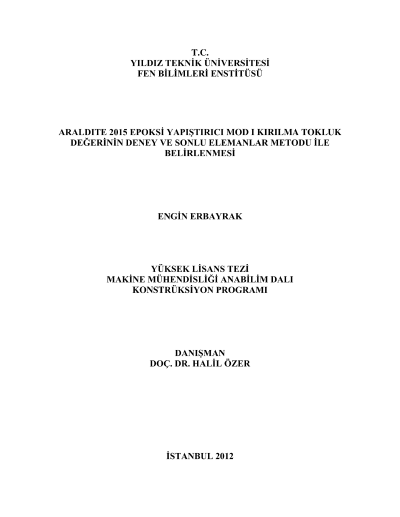

Engin Erbayrak (Master Thesis). Determination of mode I fracture toughness for Araldite 2015 epoxy adhesive by experiment and finite element method, 2012, Yıldız Technical University.
Keywords
License
Tüm Hakları Saklıdır
This work is shared under the specified license terms.
