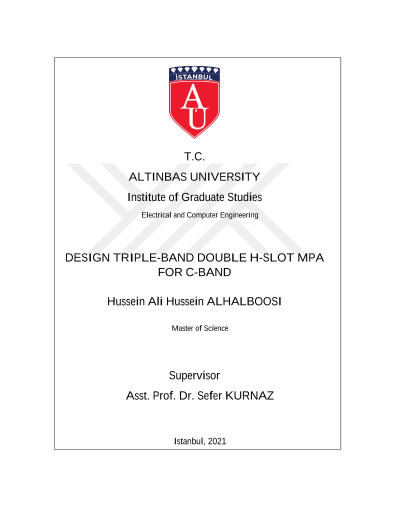

C-BAND İÇİN ÜÇ BANTLI ÇİFT H-SLOT MPA TASARIM

In several significant wireless implementations, the MSP antennas. Double H-slot patch 3-band antenna in C-Band is implemented in this article. The radiation productivity, including radiation patterns, antenna benefits, VSWR and rerouting losses, was simulated and described using ANSOFT HFSS Ver. 17.2. The design of this antenna is easier than other 3-band antennas and only consists of a substratum, a soil and a coaxial feeder string. I handle in C-band (4-8 GHz) and we have 3 frequencies in the sector (4.01 GHz, 5.81 GHz, and 6.55 GHz). On the Rogers RT/duroid 5880/ ℇr 2.2, the spreading patch is tumbled and the Hight is 15748mm for the substratum pattern. The fifty-ohm antenna is fed with coaxial feeding technology. The lack of return of the Antenna improved to 27.13 dB (4.01 GHz) and 5.81 GHz (-21.78 dB), while 7.754 dB (6.55 GHz) and 4.01 GHz, 8.357dB (5.81 GHz) and 7.232 dB (6.55 GHz) suggested the return loss for that Antenna. Simultaneously. The simulation computer displays VSWR 3.95-4.05 GHz, 5.75-5.88 GHz, and 6.5-6.61 GHz.
